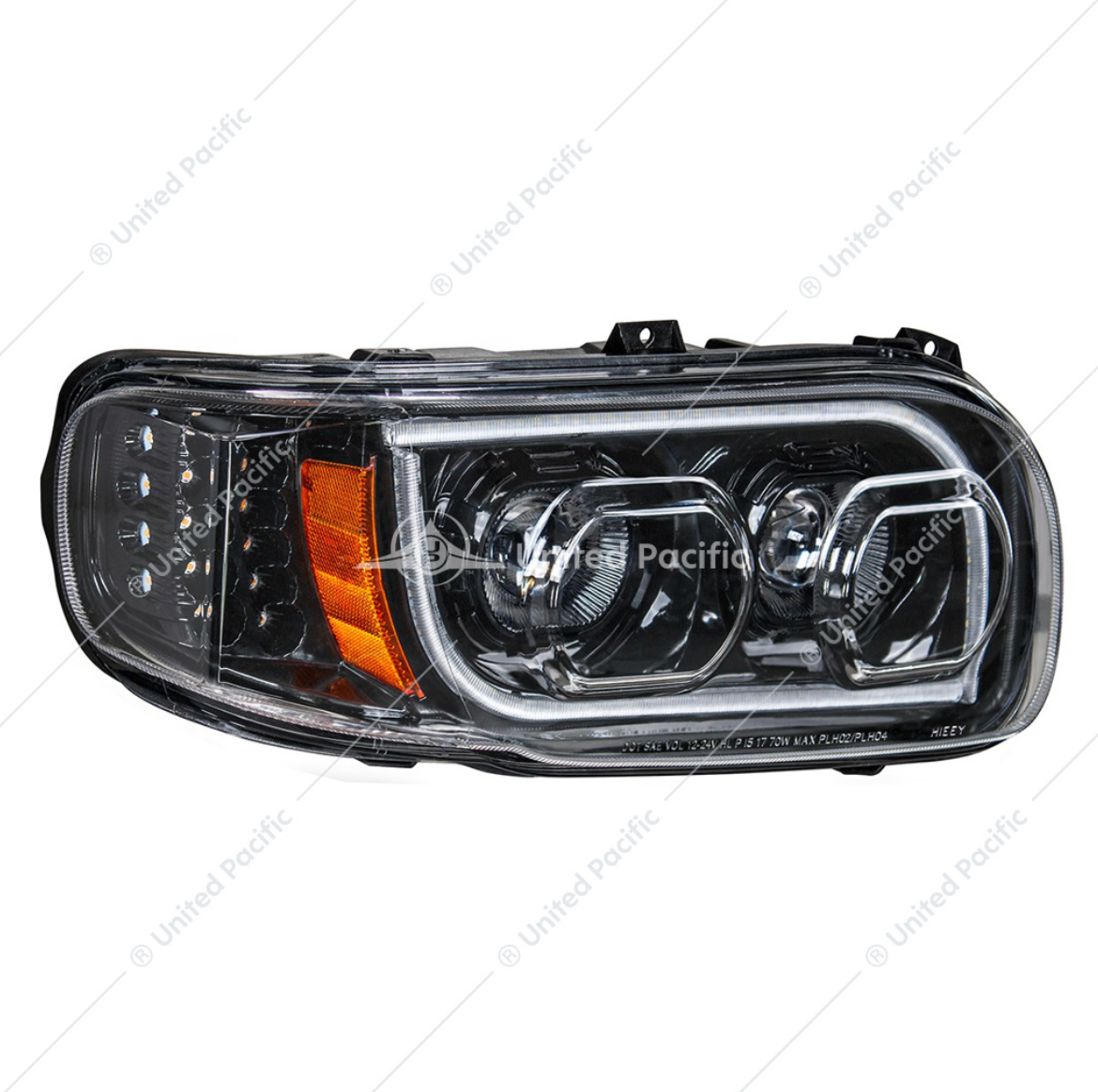

31147 BL 388/389 HEADLIGHT BLACK OUT PASSANGER

$395.00 USD

Sale Sold out

Bold and unique headlight design. Patent number D866,822.

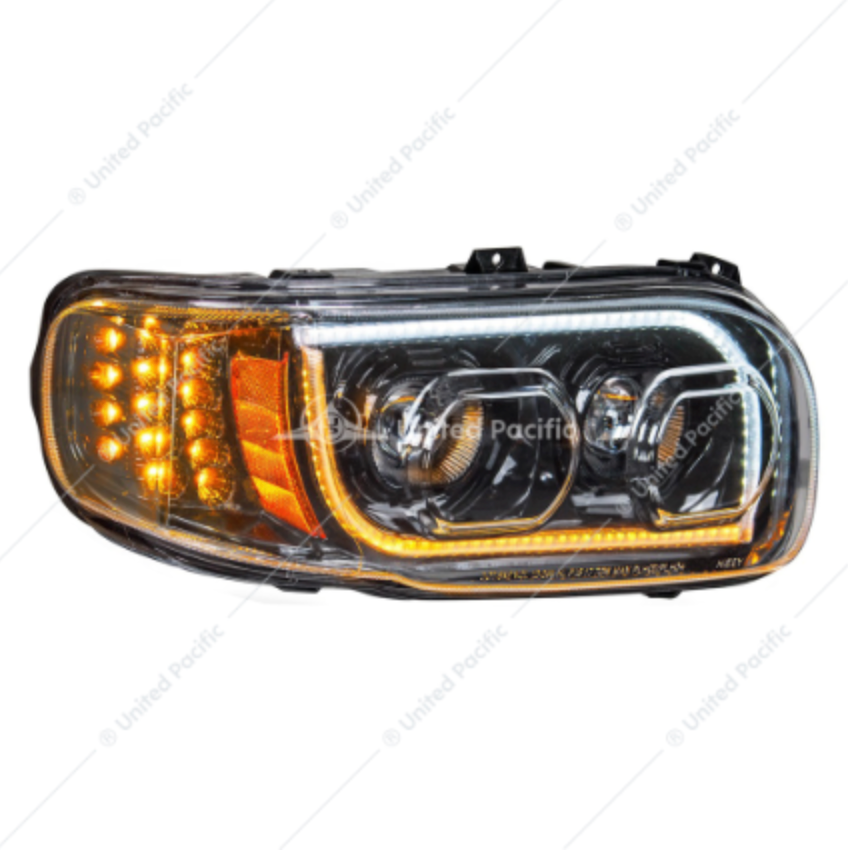

Dual color LED position light bar changes from white to amber when turn signal activated.
Easy connection, plugs into existing wiring harness.
Low beam: 1,600 Lumens, 1.25 Amps, 12V DC Input.
High beam: 2,400 Lumens, 1.25 Amps, 12V DC Input.
Also fits Peterbilt 2005-2015 388, 2014-2022 567.
Load resistor may be needed on the low beam circuit. The load resistor is added low beam wire pin 5, and the resistor is grounded. Load resistor should be installed on the headlight harness under the hood with air circulation.
Note: please do not discard unused factory headlight wiring harness.
DOT/SAE, FMVSS 108.
